System Design Case Study
Project Overview & Design Challenge
Design Challenge: Create a comprehensive system design for my institute's parking garage management system to address inefficient space usage, manual processes, and congestion issues.
My Role: System Designer responsible for creating UML diagrams, defining system architecture, and documenting the complete software design specification.
Design Deliverables:
- Use Case Analysis & Requirements Specification
- Activity Diagrams for workflow modeling
- Class Diagrams for system architecture
- Communication Diagrams for component interaction
- State Machine Diagrams for behavioral modeling
- Methodology Selection & Justification
Requirements Analysis & Use Case Modeling
Key System Requirements Identified:
- Automated client registration and validation
- Real-time parking space monitoring via sensors
- License plate recognition for access control
- Flexible payment processing (registered & unregistered users)
- Overstay detection and additional billing
- Automated receipt generation and email notifications

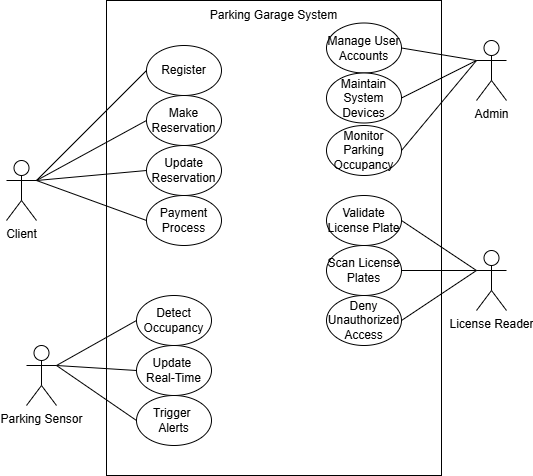

Actors & Interactions:
Designed four primary actors (Client, Admin System, Parking Sensor, License Plate Reader) with clearly defined responsibilities and interaction patterns.

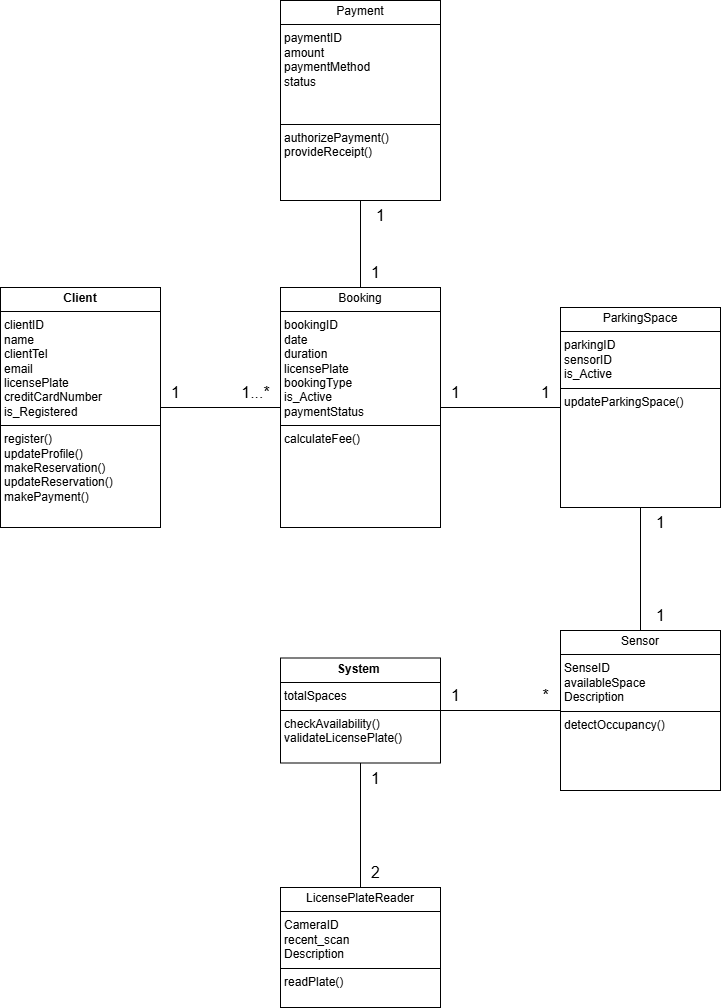

System Architecture & Class Design
Core Components Designed:
- Client Management: Registration, profile updates, reservation handling
- Booking System: Reservation tracking, fee calculation, status management
- Payment Processing: Multiple payment methods, authorization, receipt generation
- Parking Infrastructure: Space monitoring, sensor integration, real-time updates
- Access Control: License plate validation, gate control, security enforcement
Architectural Decisions:
Designed a modular architecture with clear separation of concerns, allowing independent development and testing of system components.

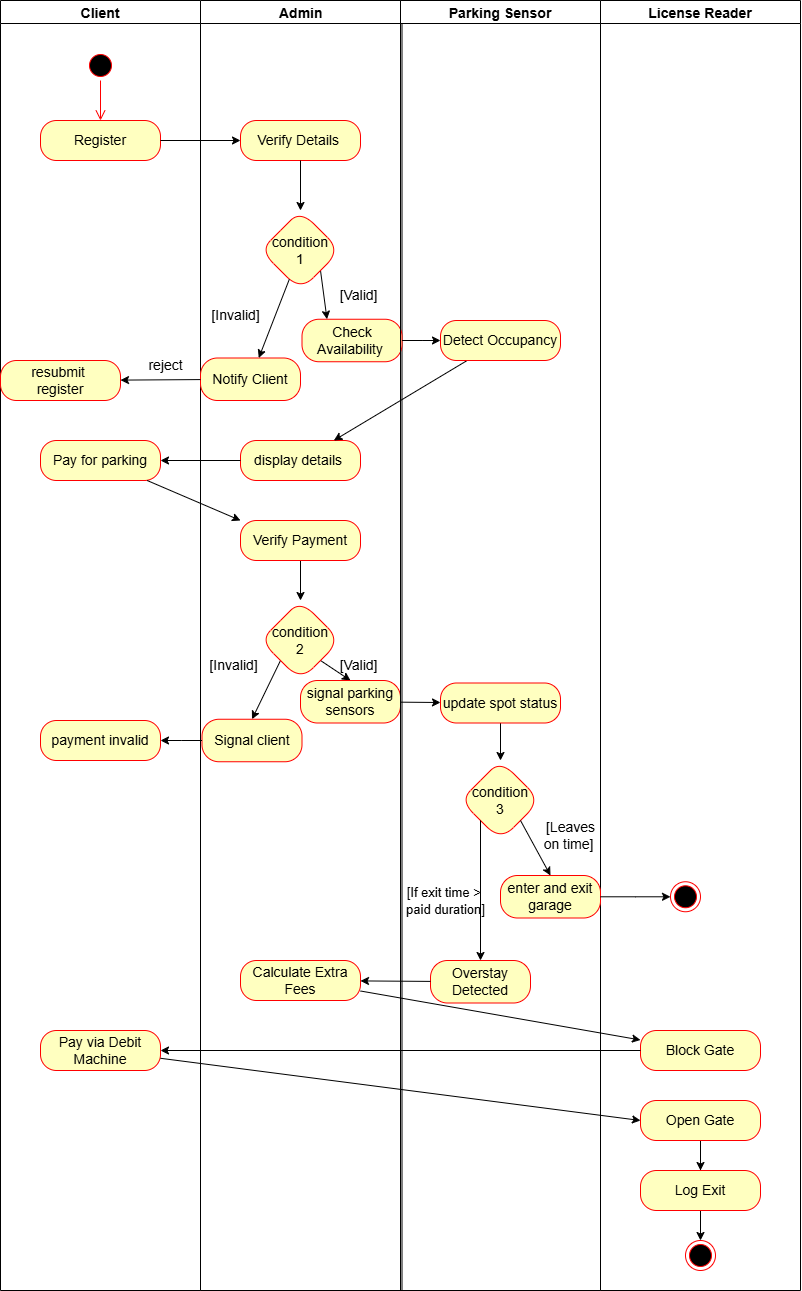

Process Modeling & Workflow Design
Key Workflows Designed:
- Registration & Validation: Client onboarding with duplicate detection and email verification
- Reservation Process: Space availability checking, booking confirmation, payment processing
- Access Control Flow: License plate scanning, validation, gate control
- Overstay Management: Additional fee detection, payment enforcement, access control
Error Handling & Edge Cases:
Designed comprehensive error handling for invalid registrations, payment failures, sensor malfunctions, and system exceptions.
Development Methodology & Implementation Strategy
Methodology Evaluation:
Analyzed five software development methodologies (Waterfall, RAD, Spiral, V-Model, Agile) and selected Agile/Scrum as the optimal approach.
Selected Approach: Agile/Scrum
- Adaptability: Accommodates changing requirements like new payment methods
- Incremental Delivery: Phased feature rollout reduces risk
- Stakeholder Engagement: Regular feedback ensures alignment with business needs
- Scalability: Supports future system expansion and feature additions
Technical Design Skills Demonstrated
UML Modeling
- Use Case Diagrams
- Activity Diagrams
- Class Diagrams
- Communication Diagrams
- State Machine Diagrams
System Analysis
- Requirements Gathering
- Stakeholder Analysis
- Process Modeling
- Edge Case Identification
Architectural Design
- Component Design
- Interface Definition
- Data Flow Modeling
- System Integration
